2 Piece (MOQ)
| Business Type | Manufacturer, Exporter, Supplier |
| Shaft Diameter | 18...100mm |
| Pressure | 25 bar (max) |
| Temperature | -20...1400°c |
| Click to view more | |
Product Details
Velocity
15 m/sec
Seal Faces
Carbon, SiC, Tung. Carbide
Metal Parts
SS304, SS316, Hastelloy-C, Alloy 20
O-rings
Viton, Nitrile
Require a stepped sleeve, making installation simple and efficient. This seal is specially engineered for demanding applications involving media with solids or high viscosity. Thanks to its unique design, the springs are completely protected from the process fluid, preventing clogging and buildup. This ensures smooth operation, longer service life, and exceptional reliability in even the most challenging conditions.
SEAL CHARACTERISTICS :-
- Single Seal
- Balanced
- Capsulated Spring
- Independent of direction of rotation
APPLICATION :-
- General Chemicals
- Food Industries
- Media Containing Solids

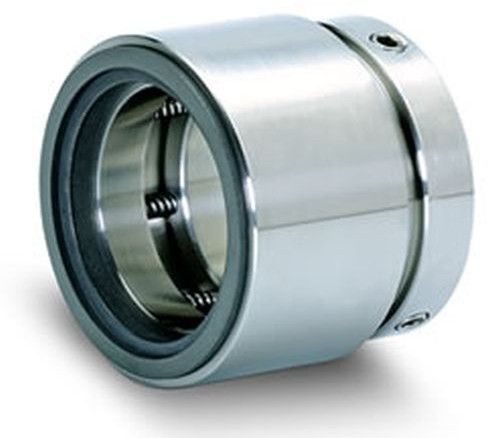

Looking for "Type 1125 Capsulated Spring Mechanical Seal" ?
